Specifications

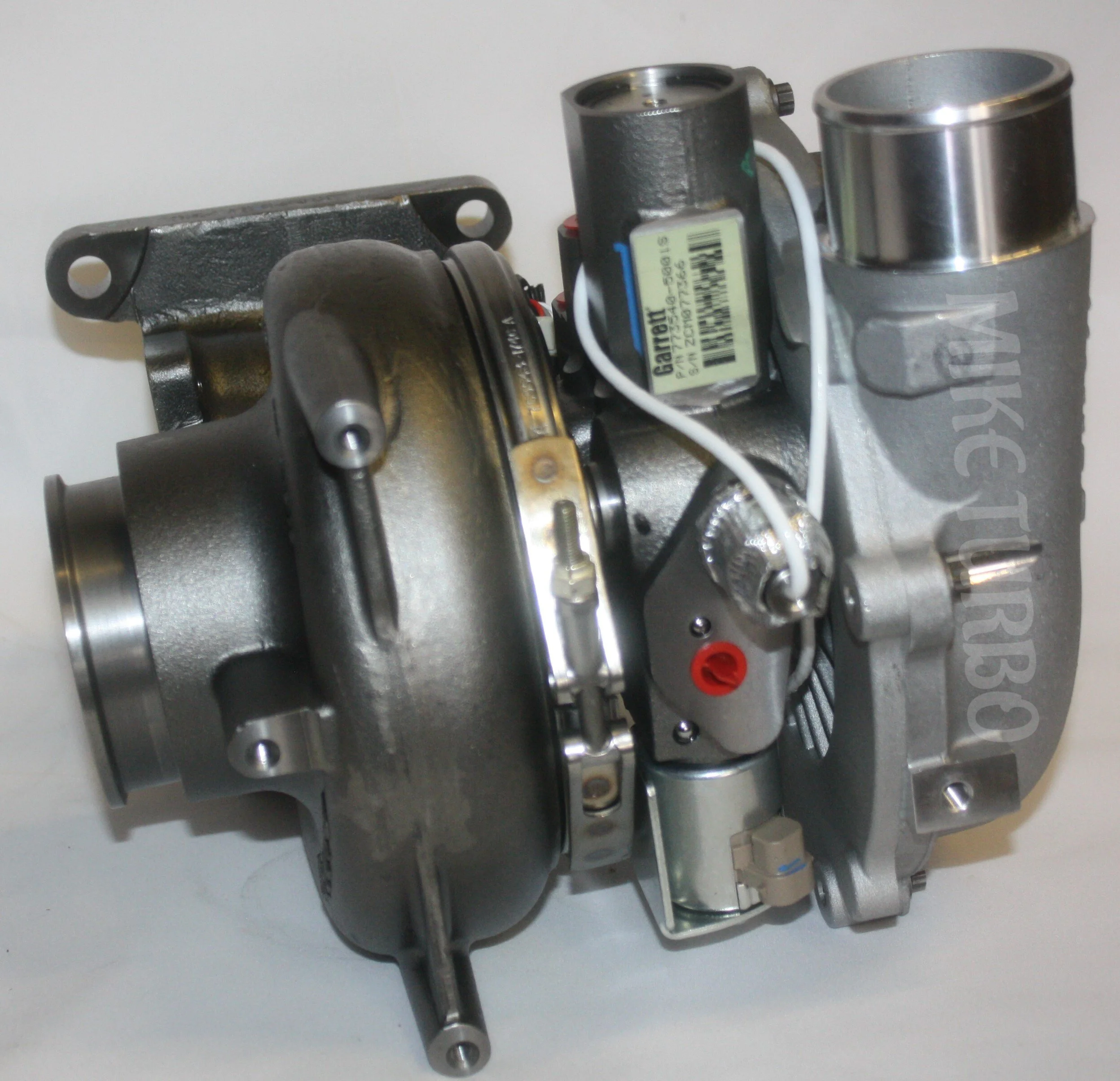

PowerMax Stage 1 Turbocharger Upgrade Kit includes:
Garrett patented AVNTTM turbocharger
Adapter cable
Installation instructions
Gasket: Not included
Turbo Model: GT3794VA
Turbocharger Bearing Style: Journal Bearing
Engine: Chevy Duramax 6.6L 2004.5-2009
Complete drop-in performance upgrade kit:
Advanced GT-series wheel designs that ensure top performance, lower back pressure and reduced intake and exhaust gas temperatures
Garrett patented Advanced Variable Nozzle Turbine (AVNTTM) design for increased compressor flow and turbine flow
Utilizes nine movable vanes which significantly increase turbine efficiency and improve engine performance
Patented integral electro-hydraulic actuation and proportional solenoid for infinitely variable control
Provides up to an estimated 500 HP with no sacrifice to drivability
Suitable as a performance upgrade or replacement for original equipment
Outline interchangeable for a perfect fit each and every time
